Applications
Optical alignment, metrology & inspection, and calibration scanning.
Optional Accessories

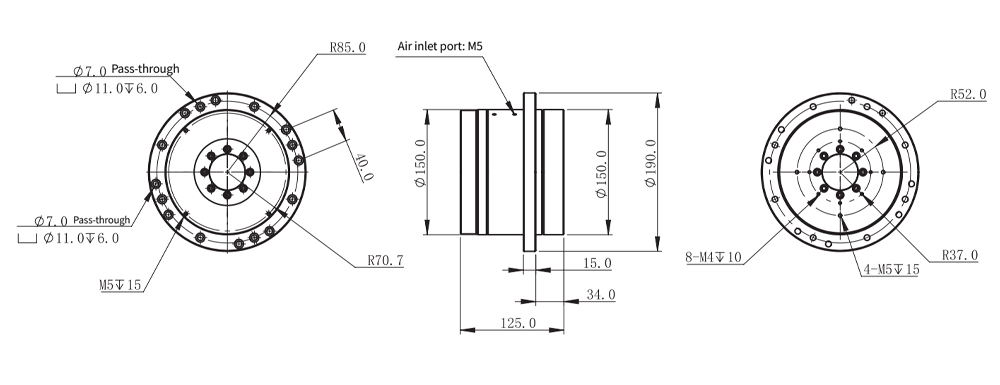

The SDG series precision air bearing rotary table adopts a non-motorized design, allowing customers to install motors and feedback devices independently to achieve high precision and high rigidity.
Technical Specifications | Unit | MKN-SDG125-150 | MKN-SDG125-200 | MKN-SDG125-300 |
Drive type | / | Manual | ||
Rotation angle | ° | 360° continuous rotation | ||
Turntable diameter | mm | 150 | 200 | 300 |
Axial load capacity | N | 800 | 1700 | 3600 |
Radial load capacity | N | 200 | 450 | 1000 |
Axial runout | nm | ≤100 | ≤80 | ≤60 |
Radial runout | nm | ≤100 | ≤100 | ≤80 |
Mounting plate accuracy | um | 2 | 2 | 2 |
Mounting surface requirements | um | ＜3.5 | ＜3.5 | ＜3.5 |
Working air pressure | Mpa | 0.4-0.5 | ||
Rotary table weight | Kg | ＜15 | ＜25 | ＜50 |
Rotary table material | / | Stainless steel | ||
