MKN-13*50-01
Air Bearing Sleeves
Mechanical parameters | Unit | Value |
Max. load capacity | N | 44 |
Vertical stiffness | N/μm | 11 |
Max. torque | Nm | 0.8 |
Longitudinal stiffness | N/m/mil | 2.1 |
Air consumption range | N/min | （2.2，3.1） |
Weight | g | 31 |
Min. shaft tolerance | μm | （-5，-17） |

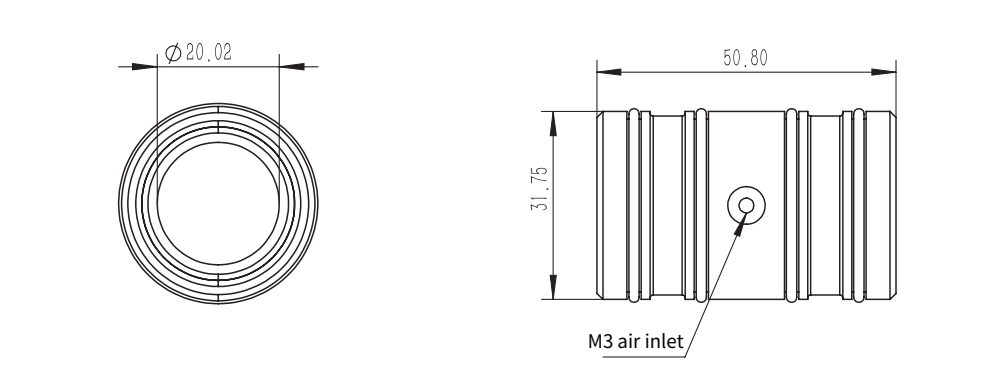

MKN-20*51-01
Air Bearing Sleeves
Mechanical parameters | Unit | Value |
Max. load capacity | N | 133 |
Vertical stiffness | N/μm | 23 |
Max. torque | Nm | 1.1 |
Longitudinal stiffness | N/m/mil | 2.8 |
Air consumption range | N/min | （3.5，4.8） |
Weight | g | 57 |
Min. shaft tolerance | μm | （-7，-20） |

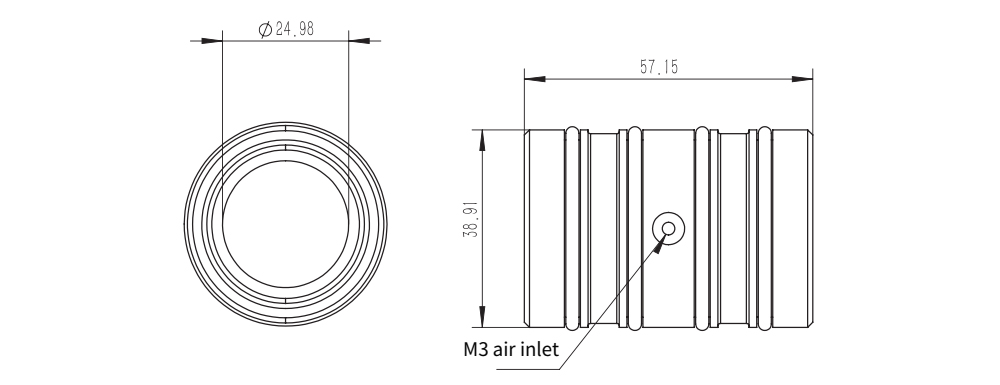

MKN-25*57-01
Air Bearing Sleeves
Mechanical parameters | Unit | Value |
Max. load capacity | N | 187 |
Vertical stiffness | N/μm | 34 |
Max. torque | Nm | 1.9 |
Longitudinal stiffness | N/m/mil | 5.3 |
Air consumption range | N/min | （4.5，5.9） |
Weight | g | 85 |
Min. shaft tolerance | μm | （-7，-20） |

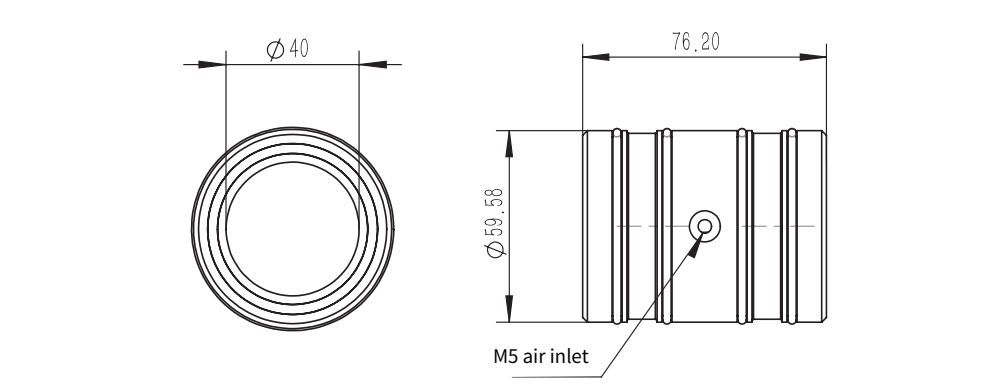

MKN-40*76-01
Air Bearing Sleeves
Mechanical parameters | Unit | Value |
Max. load capacity | N | 645 |
Vertical stiffness | N/μm | 72 |
Max. torque | Nm | 3.1 |
Longitudinal stiffness | N/m/mil | 11 |
Air consumption range | N/min | （7.1，9.3） |
Weight | g | 204 |
Min. shaft tolerance | μm | （-9，-25） |

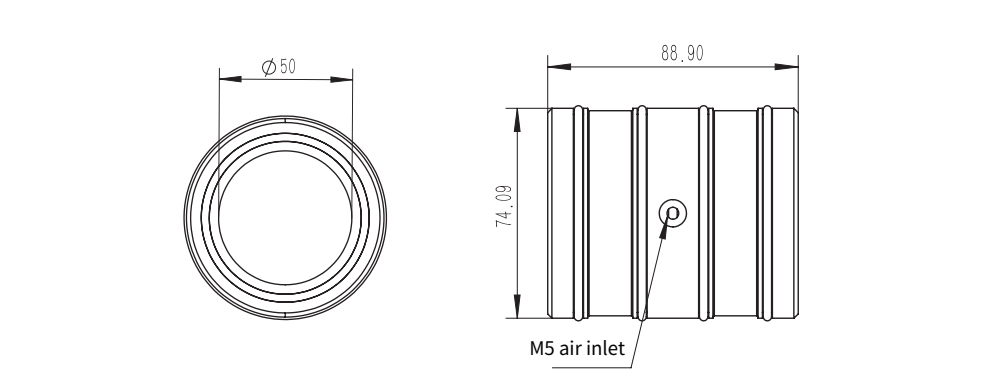

MKN-50*89-01
Air Bearing Sleeves
Mechanical parameters | Unit | Value |
Max. load capacity | N | 934 |
Vertical stiffness | N/μm | 110 |
Max. torque | Nm | 5.2 |
Longitudinal stiffness | N/m/mil | 23 |
Air consumption range | N/min | （9.0，11.9） |
Weight | g | 482 |
Min. shaft tolerance | μm | （-9，-25） |

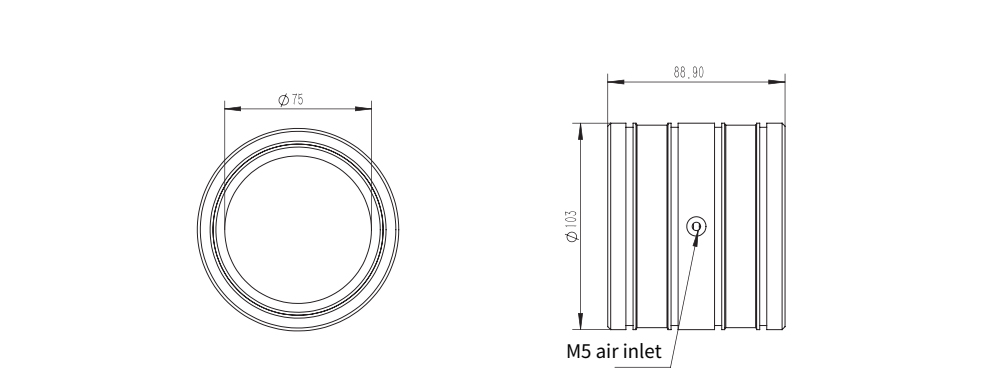

MKN-75*89-01
Air Bearing Sleeves
Mechanical parameters | Unit | Value |
Max. load capacity | N | 1245 |
Vertical stiffness | N/μm | 159 |
Max. torque | Nm | 7.1 |
Longitudinal stiffness | N/m/mil | 31 |
Air consumption range | N/min | （13.2，17.5） |
Weight | g | 623 |
Min. shaft tolerance | μm | （-9，-25） |
